W4

Group briefing

Design Tools: Autodesk Inventor Proffessional 2021

Design motivation: Because I took a course in the last semester-Introduction to Electromechanical Optical System, I found it very interesting to play with this institution. I want to do additional design through computer simulation.

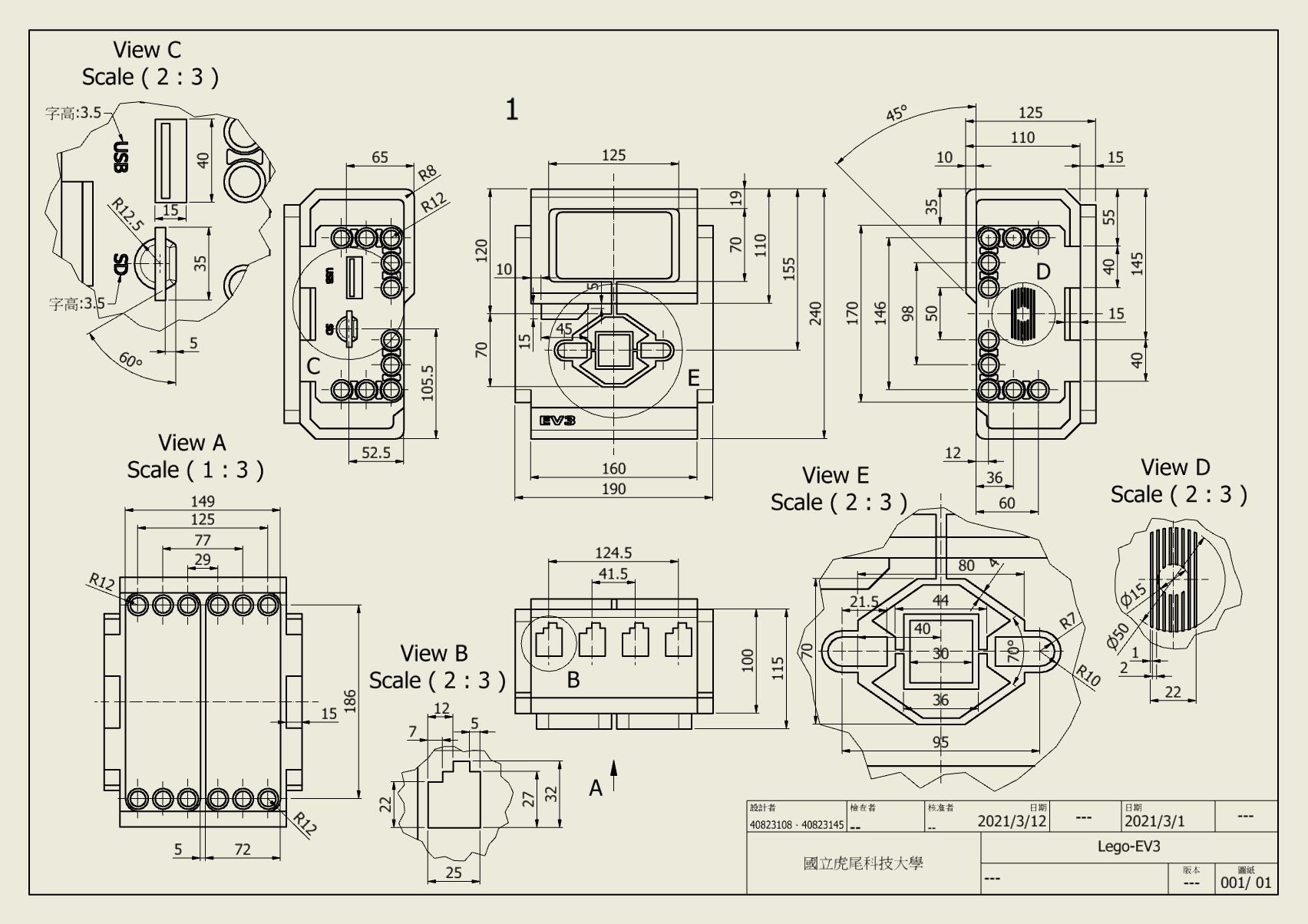

2D engineering drawing:

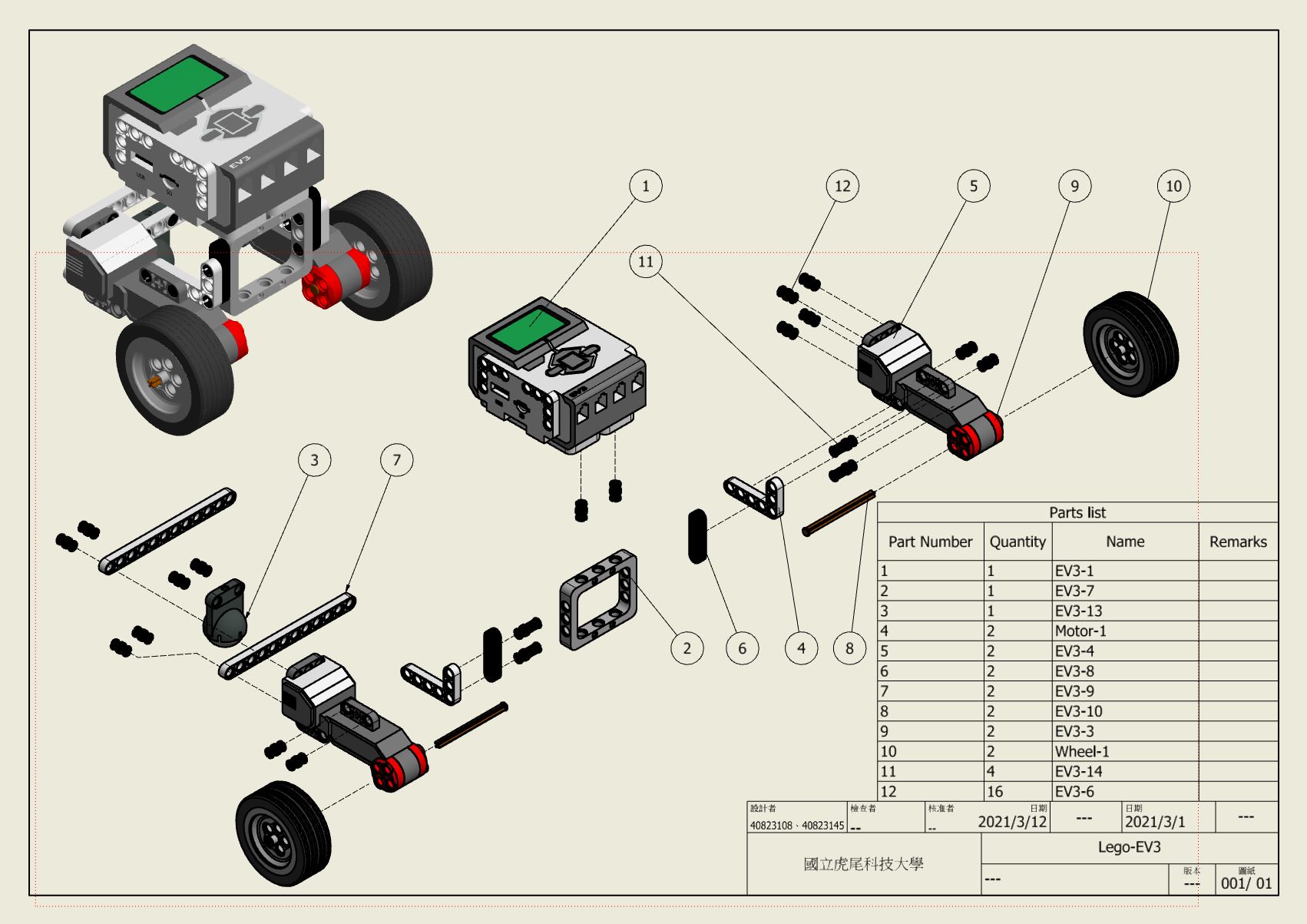

3D exploded view, BOM:

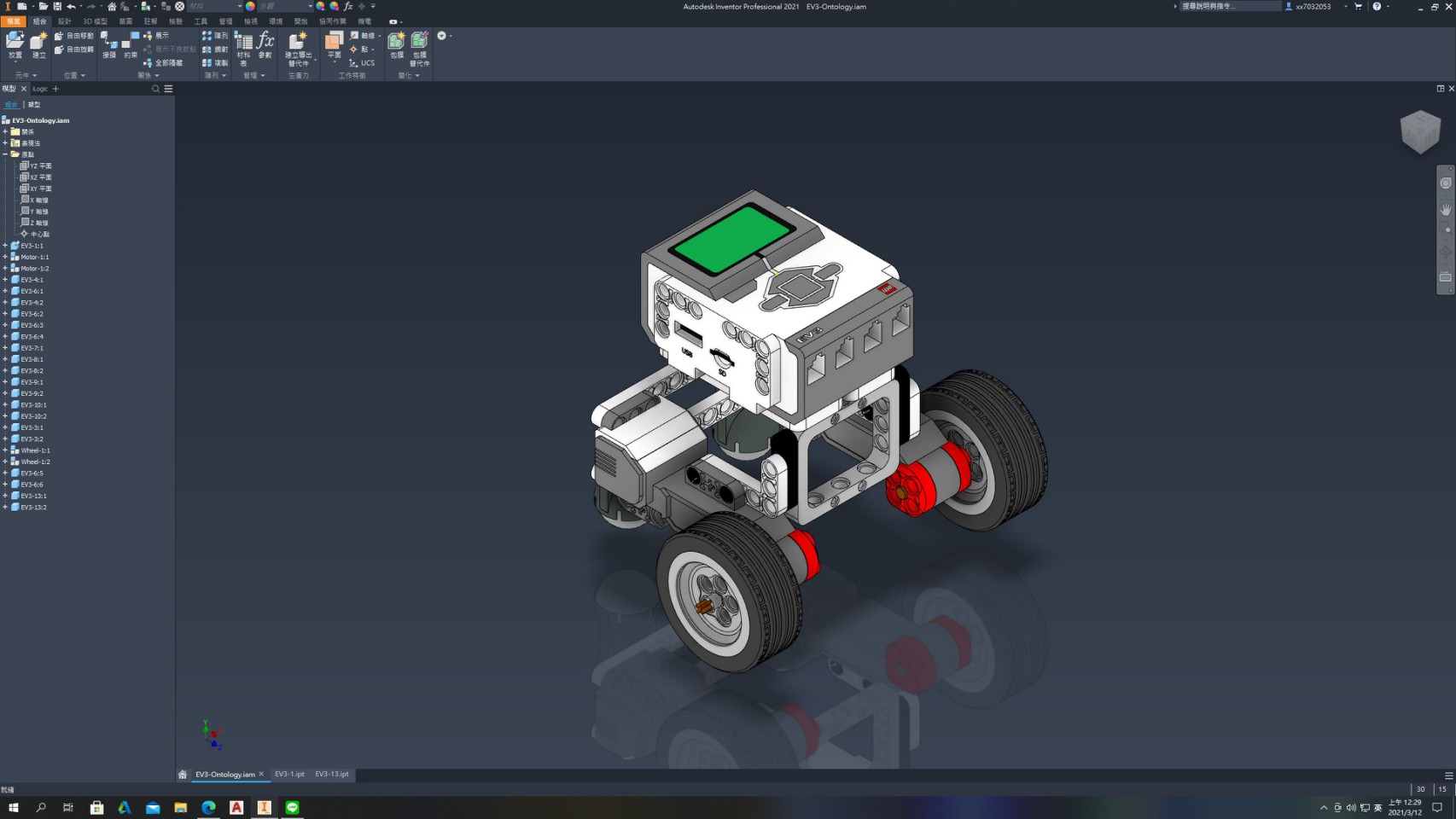

3D model:

Simulation:

Collaborative design method and process: Use google meet screen sharing for discussion and design.

Design result: Because the size is customized, the scale is a big problem. In the simulation, the parts are too complicated, which leads to the need for simplification.

Self-evaluation: 70
